22HP100, Timing Pulley

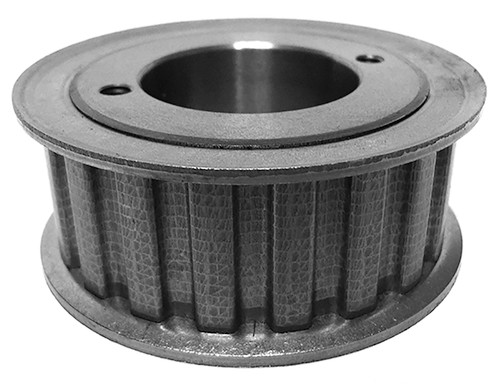

22HP100 - Cast Iron Imperial Pitch Pulleys

22HP100

22HP100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

22HP100, Timing Pulley, Cast Iron

Learn more about 22HP100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22HP100
Teeth 22
Tooth Style H
For Belt Width (in) 1.0000
Type 6
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 3.501
Outside Diameter (in) 3.447
Flange Diameter (in) 3.813
Face Width (in) 1.250
Overall Length (in) 2.125
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 89.00
O.D. (mm) 87.60
MOQ 1
Weight (lb) 2.08
Part Number Cross Reference 22HP100, 22HP100, 22HP100
