22MP037-6FA2, Timing Pulley

22MP037-6FA2 - Aluminum Imperial Pitch Pulleys

22MP037-6FA2

Click to Enlarge

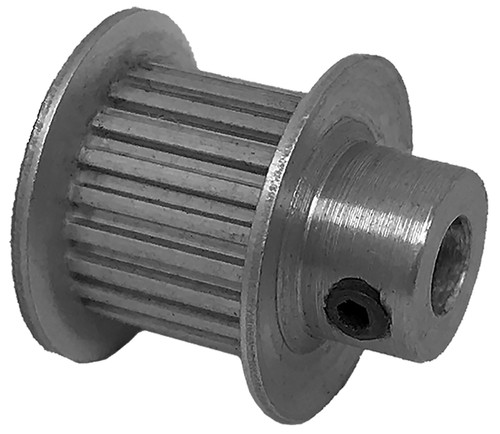

22MP037-6FA2, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22MP037-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22MP037-6FA2
Teeth 22
Tooth Style MXL
For Belt Width (in) 0.3750
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/16 Inch Finished Bore
Pitch Diameter (in) 0.560
Outside Diameter (in) 0.540
Flange Diameter (in) 0.740
Face Width (in) 0.514
Overall Length (in) 0.750
Hub Diameter (in) 0.390
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.410
Unit System Inch
P.D. (mm) 14.00
O.D. (mm) 13.70
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A16-022DF3706, A6A16-022DF3706, 22MP-037 3/16 6F, 22MXL037-1A X 3/16, 22MP037-6FA2
Set Screw Quantity 2
