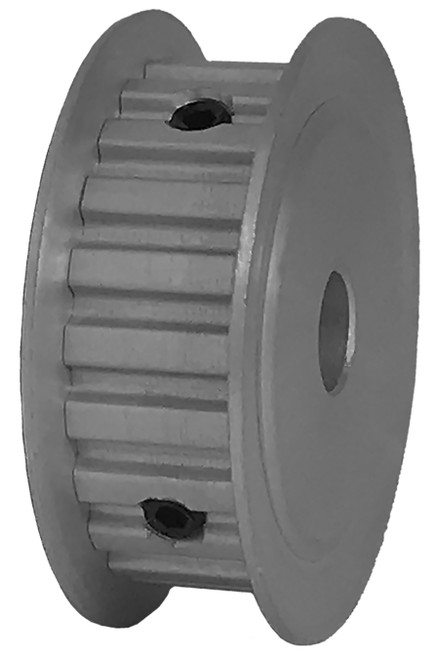

22XL037-3FA4, Timing Pulley

22XL037-3FA4 - Aluminum Imperial Pitch Pulleys

Product Details for 22XL037-3FA4

Comparable to: 22XL037-3FA4, A 6A3-22H3710, A6A3-22H3710

22XL037-3FA4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22XL037-3FA4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22XL037-3FA4
Teeth 22
Tooth Style XL
For Belt Width (in) 0.375
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 1.401
Outside Diameter (in) 1.381
Flange Diameter (in) 1.625
Face Width (in) 0.563
Overall Length (in) 0.563
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 1.0685
Weight (lb) 0.09
Part Number Cross Reference 22XL037-3FA4, A 6A3-22H3710, A6A3-22H3710
