22XL037-6FA5, Timing Pulley

22XL037-6FA5 - Aluminum Imperial Pitch Pulleys

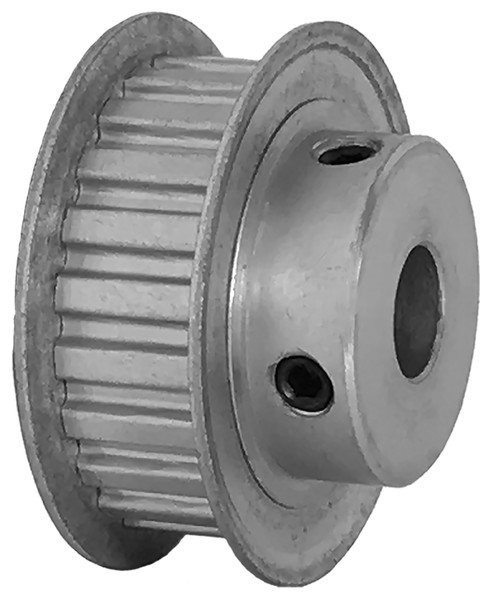

22XL037-6FA5

Click to Enlarge

22XL037-6FA5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22XL037-6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22XL037-6FA5
Teeth 22
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.375
Bore Description 3/8 Inch Finished Bore
Pitch Diameter (in) 1.401
Outside Diameter (in) 1.381
Flange Diameter (in) 1.625
Face Width (in) 0.563
Overall Length (in) 0.875
Hub Diameter (in) 1.000
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 36.00
O.D. (mm) 35.10
MOQ 1
Weight (lb) 0.10
Part Number Cross Reference A 6A3-22DF03712, A6A3-22DF03712, 22XL037 X 3/8 6F, TP20A6W6-22, 22XL037-1A X 3/8, 22XL037-6FA5, 22XL037-6FA5
Set Screw Quantity 2

Comparable to: A 6A3-22DF03712, A6A3-22DF03712, 22XL037 X 3/8 6F, TP20A6W6-22, 22XL037-1A X 3/8, 22XL037-6FA5, 22XL037-6FA5
