22XXHR300, Timing Pulley

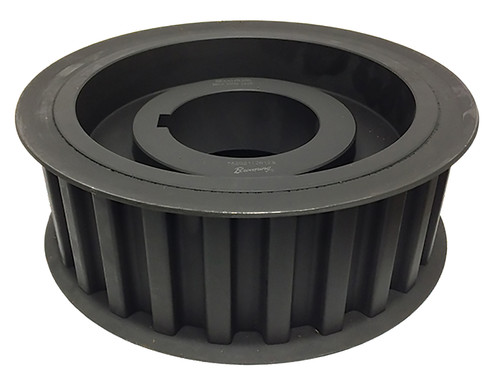

22XXHR300 - Cast Iron Imperial Pitch Pulleys

22XXHR300

22XXHR300 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

22XXHR300, Timing Pulley, Cast Iron

Learn more about 22XXHR300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22XXHR300
Teeth 22
Tooth Style XXH
For Belt Width (in) 3.0000
Type 11
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R1 Bushing
Pitch Diameter (in) 8.754
Outside Diameter (in) 8.634
Flange Diameter (in) 9.500
Face Width (in) 3.688
Overall Length (in) 3.969
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 222.00
O.D. (mm) 219.30
MOQ 1
Weight (lb) 29.60
Part Number Cross Reference 22XXHR300, 22XXHR300, 22XXHR300
