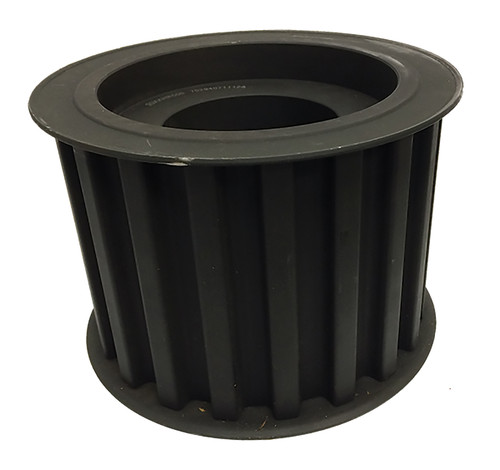

22XXHR500, Timing Pulley

22XXHR500 - Cast Iron Imperial Pitch Pulleys

22XXHR500

22XXHR500 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

22XXHR500, Timing Pulley, Cast Iron

Learn more about 22XXHR500 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22XXHR500
Teeth 22
Tooth Style XXH
For Belt Width (in) 5.0000
Type 11
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R2 Bushing
Pitch Diameter (in) 8.754
Outside Diameter (in) 8.634
Flange Diameter (in) 9.500
Face Width (in) 5.813
Overall Length (in) 6.094
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
P.D. (mm) 222.00
O.D. (mm) 219.30
MOQ 1
Weight (lb) 51.50
Part Number Cross Reference 22XXHR500, 22XXHR500, 22XXHR500
