23XL-PS8S, Timing Pulley Stock

23XL-PS8S, A6C2-23XL08, A 6C2-23XL08, 23XL-PS-8S, XL 23 ST, 23XL-P-8S

Product Details for 23XL-PS8S

Comparable to: A 6C2-23XL08, A6C2-23XL08, 23XL-PS-8S, XL 23 ST, 23XL-P-8S

Click to Enlarge

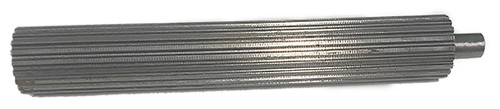

23XL-PS8S, Timing Pulley Stock, Steel

Learn more about 23XL-PS8S Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23XL-PS8S
Teeth 23
Tooth Style XL
Material Steel
Pitch Diameter (in) 1.464
Outside Diameter (in) 1.444
Overall Length (in) 8.750
Unit System Inch
Min. Usable Length (in) 8.000
P.D. (mm) 37.20
O.D. (mm) 36.70
MOQ 1
Weight (lb) 3.70
Part Number Cross Reference A 6C2-23XL08, A6C2-23XL08, 23XL-PS-8S, XL 23 ST, 23XL-P-8S
Shank Length (in) 0.7500
