24-5M09-6A3, Timing Pulley

24-5M09-6A3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 24-5M09-6A3

Comparable to: A 6A25-024NF0908, A6A25-024NF0908, PT024G08L09N

Click to Enlarge

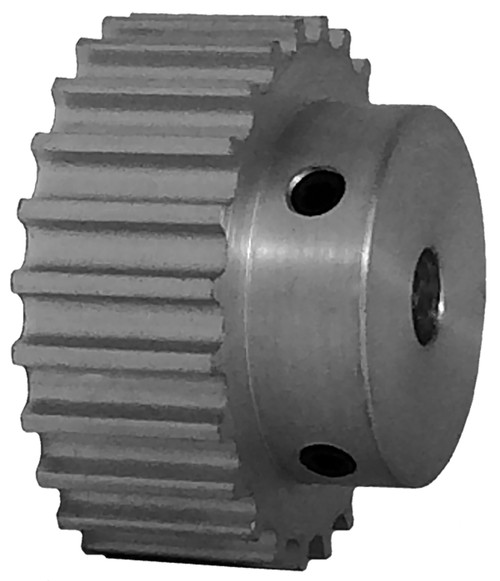

24-5M09-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24-5M09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24-5M09-6A3
Teeth 24
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.504
Outside Diameter (in) 1.459
Face Width (in) 0.546
Overall Length (in) 0.859
Hub Diameter (in) 1.000
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.10
Part Number Cross Reference A 6A25-024NF0908, A6A25-024NF0908, PT024G08L09N
Set Screw Quantity 2
