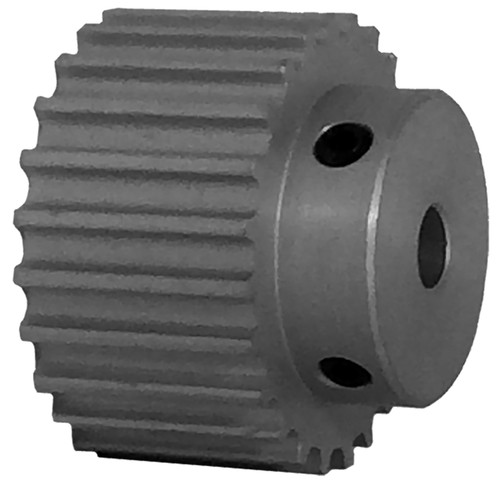

24-5M15-6A3, Timing Pulley

24-5M15-6A3

Click to Enlarge

24-5M15-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24-5M15-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	24-5M15-6A3
Teeth	24
Tooth Style	HTD5mm
For Belt Width (mm)	15.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.504
Outside Diameter (in)	1.459
Face Width (in)	0.781
Overall Length (in)	1.093
Hub Diameter (in)	1.000
Min. Bore (in)	0.25
Unit System	Inch
P.D. (mm)	38.00
O.D. (mm)	37.10
MOQ	1
Weight (lb)	0.14
Part Number Cross Reference	A 6A25-024NF1508, A6A25-024NF1508, 24M5-L015-6, PT242G08L15N, 24-5M15-6A3, 24-5M15-6A3
Set Screw Quantity	2
