24-5MX25-6FS5, Timing Pulley

24-5MX25-6FS5 - Steel Powerhouse® MX Pulleys

24-5MX25-6FS5

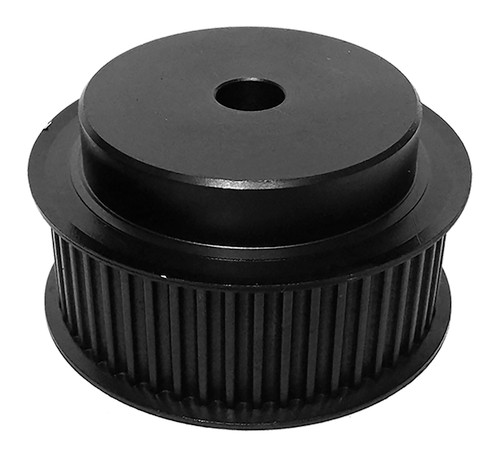

Click to Enlarge

24-5MX25-6FS5, Timing Pulley, Steel, Black Oxide,

Learn more about 24-5MX25-6FS5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24-5MX25-6FS5
Teeth 24
Tooth Style 5MX
For Belt Width (mm) 25.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.375
Bore Description 3/8 Inch Minimum Plain Bore
Pitch Diameter (in) 1.504
Outside Diameter (in) 1.459
Flange Diameter (in) 1.781
Face Width (in) 1.280
Overall Length (in) 1.680
Hub Diameter (in) 1.180
Min. Bore (in) 0.375
Pulley Belt Width (in) 1.100
Unit System Inch
P.D. (mm) 38.00
O.D. (mm) 37.10
MOQ 1
Weight (lb) 0.64
Part Number Cross Reference 24-5MX25-6FS5, 24-5MX25-6FS5
