24-8M30-6FS6, Timing Pulley

24-8M30-6FS6 - Steel Powerhouse®HTD® Pulleys

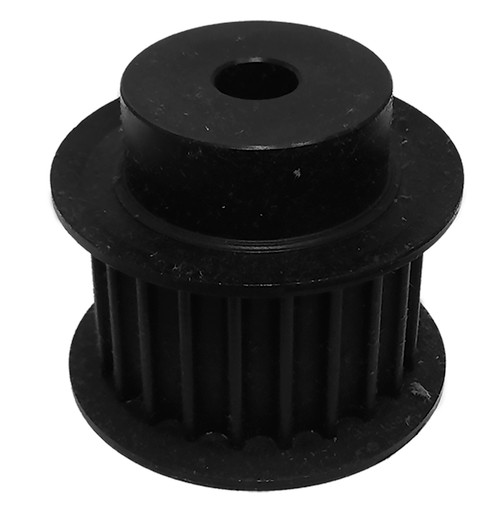

24-8M30-6FS6

Click to Enlarge

24-8M30-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 24-8M30-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24-8M30-6FS6
Teeth 24
Tooth Style HTD8mm
For Belt Width (mm) 30.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.500
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.406
Outside Diameter (in) 2.354
Flange Diameter (in) 2.756
Face Width (in) 1.500
Overall Length (in) 2.125
Hub Diameter (in) 1.812
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.250
Unit System Inch
P.D. (mm) 61.00
O.D. (mm) 59.80
MOQ 1
Weight (lb) 2.09
Part Number Cross Reference P248M30-MPB, 20182246, P24-8M-30 X 1/2 MPB HT SPKT, P248M30, P24-8M-30-MPB, P24-8M-30, P248M30MPB, 6497K212, 24-8M30-6FS6, 110721, 24-8M30-6FS6

Comparable to: P248M30-MPB, 20182246, P24-8M-30 X 1/2 MPB HT SPKT, P248M30, P24-8M-30-MPB, P24-8M-30, P248M30MPB, 6497K212, 24-8M30-6FS6, 110721, 24-8M30-6FS6
