24-8P12-1008 Powerhouse™ Pulleys

24-8P12-1008, P24-8MGT-12, 770812

Product Details for 24-8P12-1008

Comparable to: 24-8P12-1008, P24-8MGT-12, 770812

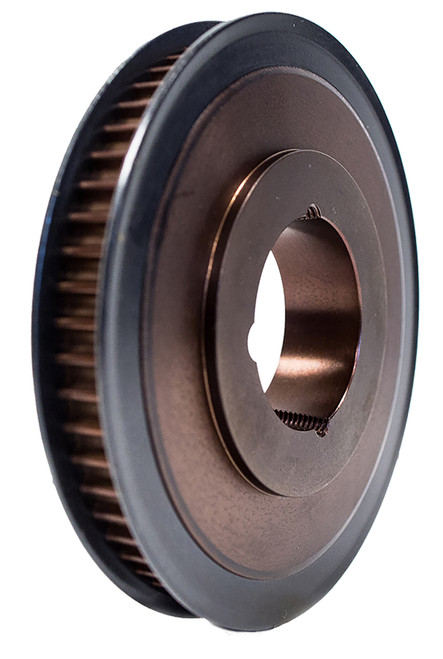

24-8P12-1008, Timing Pulley, Powerhouse, 1008 Bushing, Steel

Specifications

Product Number 24-8P12-1008
Teeth 24
Tooth Style GT 8mm
For Belt Width (mm) 12.000
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1008
Pitch Diameter (in) 2.406
Outside Diameter (in) 2.352
Flange Diameter (in) 2.756
Face Width (in) 0.875
Overall Length (in) 0.875
Pulley Belt Width (in) 0.640
Unit System Inch
Bushing 1008
Weight (lb) 0.68
Part Number Cross Reference 24-8P12-1008, P24-8MGT-12, 770812

Documentation

Download Catalog 2015_BBMAN_CATALOG_140.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24-8P12-1008_REACH_cert
RoHS Certification 24-8P12-1008_RoHS_cert
