24H150-6FS8, Timing Pulley

24H150-6FS8 - Steel Imperial Pitch Pulleys

24H150-6FS8

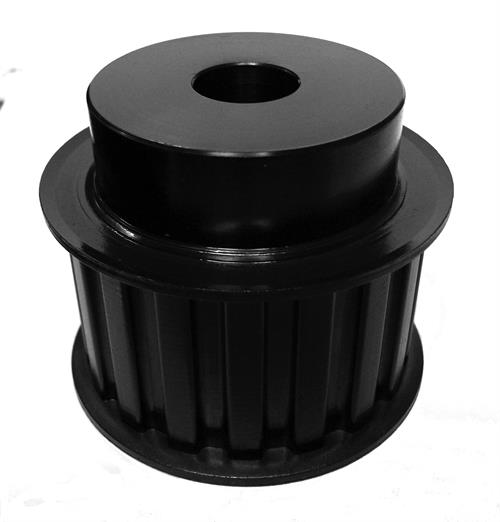

Click to Enlarge

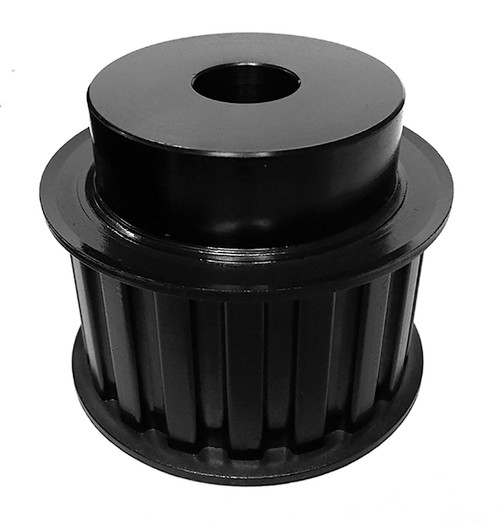

24H150-6FS8, Timing Pulley, Steel, Black Oxide,

Learn more about 24H150-6FS8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24H150-6FS8
Teeth 24
Tooth Style H
For Belt Width (in) 1.5000
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.750
Bore Description 3/4 Inch Minimum Plain Bore
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.766
Flange Diameter (in) 4.050
Face Width (in) 1.812
Overall Length (in) 2.750
Hub Diameter (in) 3.000
Min. Bore (in) 0.75
Pulley Belt Width (in) 1.562
Unit System Inch
P.D. (mm) 97.00
O.D. (mm) 95.60
MOQ 1
Weight (lb) 6.59
Part Number Cross Reference 24H150, 24HB150, 24H150 X 3/4 MPB, 24H150MPB, P24H150, 35376698, P24H150-PB, 24H150-6FS8, 114351, 24H150-6FS8

Comparable to: 24H150, 24HB150, 24H150 X 3/4 MPB, 24H150MPB, P24H150, 35376698, P24H150-PB, 24H150-6FS8, 114351, 24H150-6FS8

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
