24HH100 Imperial Pitch Pulleys

24HH100

Product Details for 24HH100

Comparable to: 24HH100

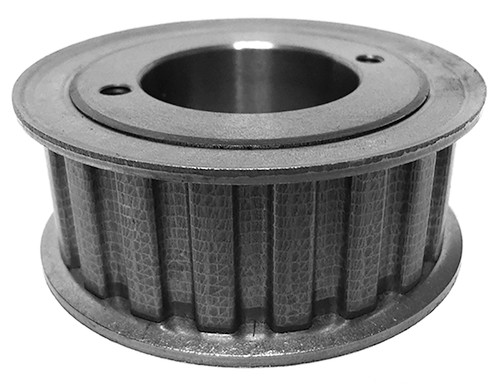

24HH100, Timing Pulley, Powerhouse Timing, H Bushing, Cast Iron

Specifications

Product Number 24HH100
Teeth 24
Tooth Style H
For Belt Width (in) 1.000
Type 16
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) H
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.768
Flange Diameter (in) 4.063
Face Width (in) 1.250
Overall Length (in) 1.438
Unit System Inch
Bushing H
Weight (lb) 4.50
Part Number Cross Reference 24HH100

Documentation

Download Catalog 2015_BBMAN_CATALOG_53.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24HH100_REACH_cert
RoHS Certification 24HH100_RoHS_cert
