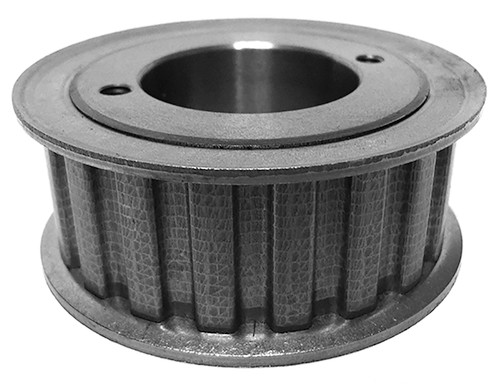

24HP100, Timing Pulley

24HP100 - Cast Iron Imperial Pitch Pulleys

24HP100

24HP100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

24HP100, Timing Pulley, Cast Iron

Learn more about 24HP100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24HP100
Teeth 24
Tooth Style H
For Belt Width (in) 1.0000
Type 6
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.766
Flange Diameter (in) 4.063
Face Width (in) 1.250
Overall Length (in) 2.125
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 97.00
O.D. (mm) 95.60
MOQ 1
Weight (lb) 2.77
Part Number Cross Reference 24HP100, 24HP100
