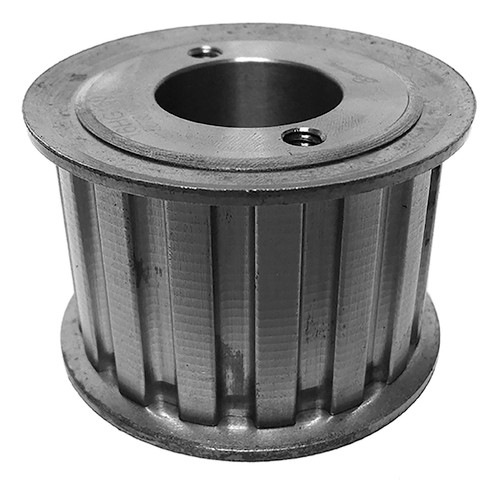

24HP150 Imperial Pitch Pulleys

24HP150

Product Details for 24HP150

Comparable to: 24HP150,

24HP150, Timing Pulley, Powerhouse Timing, P1 Bushing, Cast Iron

Specifications

Product Number 24HP150
Teeth 24
Tooth Style H
For Belt Width (in) 1.500
Type 6
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) P1
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.766
Flange Diameter (in) 4.063
Face Width (in) 1.750
Overall Length (in) 2.625
Unit System Inch
Bushing P1
Weight (lb) 3.90
List Price (1-9 Qty.) (USD) 105.65
Discount Price (10-24 Qty.) (USD) 100.62
Discount Price (25-49 Qty.) (USD) 89.44
Part Number Cross Reference 24HP150,

Documentation

Download Catalog 2015_BBMAN_CATALOG_57.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24HP150_REACH_cert
RoHS Certification 24HP150_RoHS_cert
