24L050-6FA6, Timing Pulley

24L050-6FA6 - Aluminum Imperial Pitch Pulleys

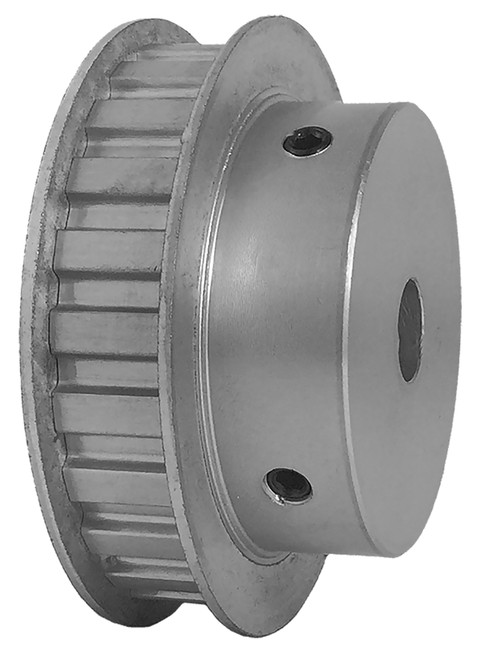

24L050-6FA6

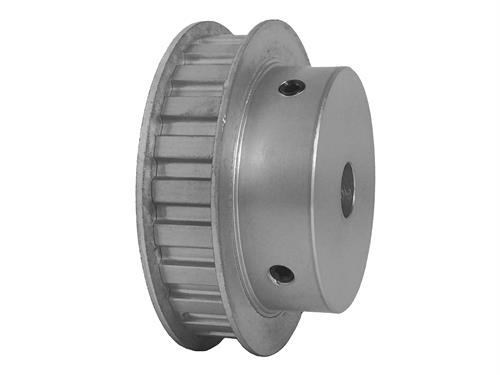

Click to Enlarge

24L050-6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24L050-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24L050-6FA6
Teeth 24
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.835
Flange Diameter (in) 3.094
Face Width (in) 0.719
Overall Length (in) 1.375
Hub Diameter (in) 2.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.560
Unit System Inch
P.D. (mm) 73.00
O.D. (mm) 72.00
MOQ 1
Weight (lb) 0.70
Part Number Cross Reference A 6A4-24DF05016, A6A4-24DF05016, PT024J16L08T, 24L050-1A X 1/2, 24L050MPB, 86235103, M24L050, 24L050-6FA6
Set Screw Quantity 2

Related Products

Comparable to: A 6A4-24DF05016, A6A4-24DF05016, PT024J16L08T, 24L050-1A X 1/2, 24L050MPB, 86235103, M24L050, 24L050-6FA6
