24L075-6FS7 Imperial Pitch Pulleys

24L075-6FS7, 24LB075, 1143

Product Details for 24L075-6FS7

Comparable to: 24L075-6FS7, 24LB075, 1143

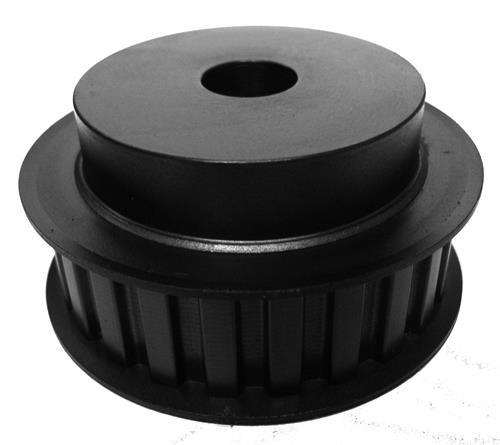

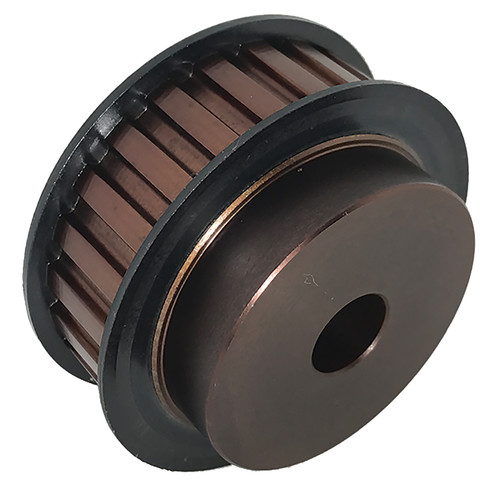

24L075-6FS7, Timing Pulley, Powerhouse Timing, 5/8 Inch Bore, Steel

Specifications

Product Number 24L075-6FS7
Teeth 24
Tooth Style L
For Belt Width (in) 0.750
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 5/8 Inch Minimum Plain Bore
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.835
Flange Diameter (in) 3.094
Face Width (in) 1.000
Overall Length (in) 1.500
Hub Diameter (in) 2.250
Min. Bore (in) 0.625
Pulley Belt Width (in) 0.820
Unit System Inch
Max. Bore (in) 2
Weight (lb) 2.10
Part Number Cross Reference 24L075-6FS7, 24LB075, 1143

Documentation

Download Catalog 2015_BBMAN_CATALOG_38.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24L075-6FS7_REACH_cert
RoHS Certification 24L075-6FS7_RoHS_cert
