24L100-6FA6 Imperial Pitch Pulleys

24L100-6FA6

Product Details for 24L100-6FA6

Comparable to: 24L100-6FA6

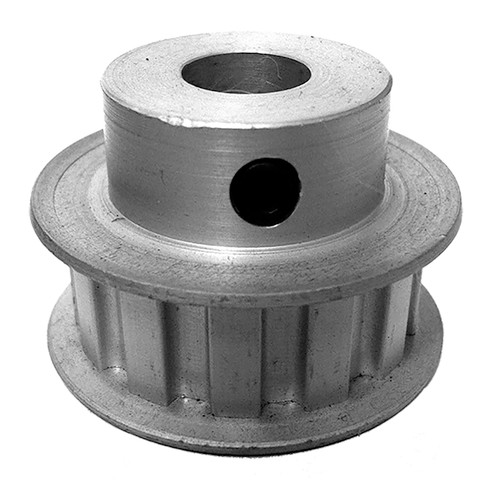

24L100-6FA6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Aluminum

Specifications

Product Number 24L100-6FA6
Teeth 24
Tooth Style L
For Belt Width (in) 1.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.835
Flange Diameter (in) 3.094
Face Width (in) 1.250
Overall Length (in) 1.750
Hub Diameter (in) 2.250
Set Screw 2 x 1/4-20 @ 90°
Min. Bore (in) 0.5
Unit System Inch
Max. Bore (in) 2
Weight (lb) 2.50
Part Number Cross Reference 24L100-6FA6

Documentation

Download Catalog 2015_BBMAN_CATALOG_43.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24L100-6FA6_REACH_cert
RoHS Certification 24L100-6FA6_RoHS_cert
