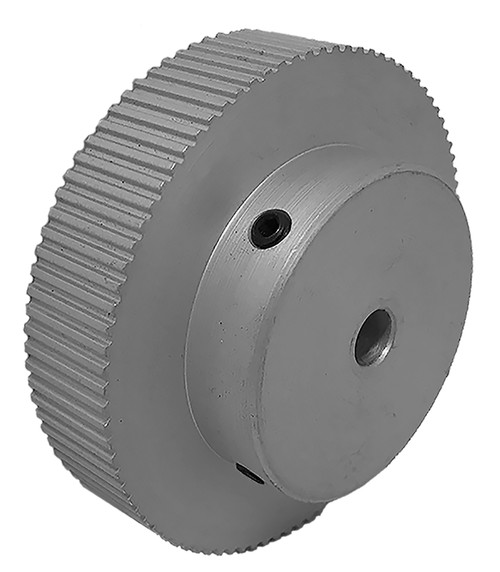

24LT312-6A3, Timing Pulley

24LT312-6A3 - Aluminum Imperial Pitch Pulleys

24LT312-6A3

24LT312-6A3 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

24LT312-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24LT312-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24LT312-6A3
Teeth 24
Tooth Style LT
For Belt Width (in) 0.3125
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.623
Outside Diameter (in) 0.603
Face Width (in) 0.875
Overall Length (in) 0.500
Hub Diameter (in) 0.500
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 16.00
O.D. (mm) 15.30
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 24LT312-6A3
Set Screw Quantity 2
