24MP012-6FA3 Imperial Pitch Pulleys

24MP012-6FA3, A6N16-024DF1208, A 6N16-024DF1208, PB24MXL012, 78260283, 24MP-012 1/4  6F, PT024A08L02T, TP7A4W2-24, 1375K26

Product Details for 24MP012-6FA3

Comparable to: 24MP012-6FA3, A6N16-024DF1208, A 6N16-024DF1208, PB24MXL012, 78260283, 24MP-012 1/4 6F, PT024A08L02T, TP7A4W2-24, 1375K26

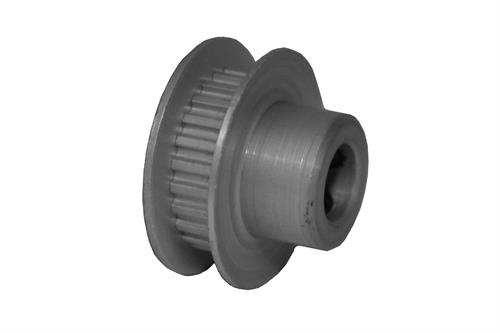

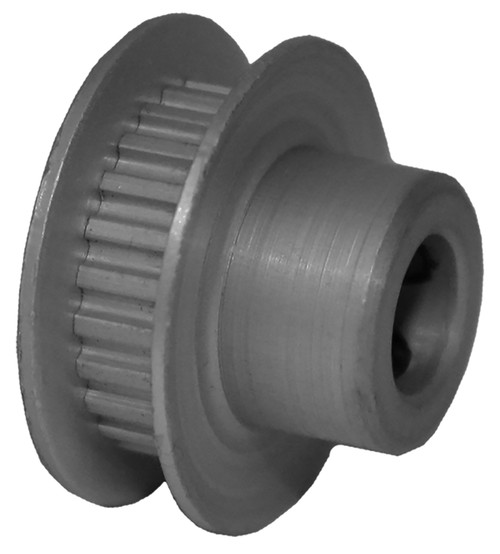

24MP012-6FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Specifications

Product Number 24MP012-6FA3
Teeth 24
Tooth Style MXL
For Belt Width (in) 0.125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 0.611
Outside Diameter (in) 0.591
Flange Diameter (in) 0.790
Face Width (in) 0.260
Overall Length (in) 0.516
Hub Diameter (in) 0.442
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.160
Unit System Inch
Weight (lb) 0.02
List Price (1-9 Qty.) (USD) 8.65
Discount Price (10-24 Qty.) (USD) 8
Discount Price (25-49 Qty.) (USD) 6.27
Discount Price (50-99 Qty.) (USD) 5.4
Discount Price (100-249 Qty.) (USD) 4.97
Part Number Cross Reference 24MP012-6FA3, A6N16-024DF1208, A 6N16-024DF1208, PB24MXL012, 78260283, 24MP-012 1/4 6F, PT024A08L02T, TP7A4W2-24, 1375K26

Documentation

Download Catalog 2015_BBMAN_CATALOG_3.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24MP012-6FA3_REACH_cert
RoHS Certification 24MP012-6FA3_RoHS_cert
