24MP025M6FA6 Metric Pulleys

24MP025M6FA6, A6A16M024DF6006, A 6A16M024DF6006

Product Details for 24MP025M6FA6

Comparable to: 24MP025M6FA6, A 6A16M024DF6006, A6A16M024DF6006

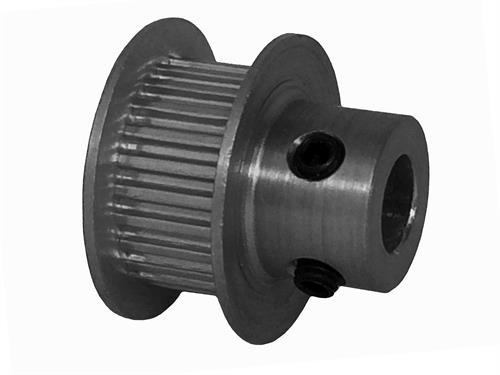

24MP025M6FA6, Timing Pulley, Powerhouse Timing, 6 mm Bore, Aluminum

Specifications

Product Number 24MP025M6FA6
Teeth 24
Tooth Style MXL
For Belt Width (in) 0.250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 6.00
Set Screw 2 x M3 @ 90°
Pulley Belt Width (mm) 7.20
Unit System Metric
P.D. (mm) 15.50
O.D. (mm) 15.00
Flange Diameter (mm) 20.10
Face Width (mm) 9.90
Overall Length (mm) 17.50
Hub Diameter (mm) 11.20
Weight (lb) 0.02
Part Number Cross Reference 24MP025M6FA6, A 6A16M024DF6006, A6A16M024DF6006
