24XHQ400, Timing Pulley

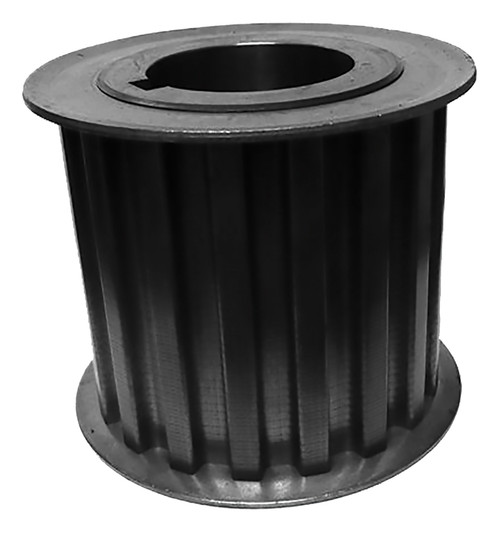

24XHQ400 - Cast Iron Imperial Pitch Pulleys

24XHQ400

24XHQ400 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

24XHQ400, Timing Pulley, Cast Iron

Learn more about 24XHQ400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XHQ400
Teeth 24
Tooth Style XH
For Belt Width (in) 4.0000
Type 11
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q2 Bushing
Pitch Diameter (in) 6.685
Outside Diameter (in) 6.575
Flange Diameter (in) 7.250
Face Width (in) 4.688
Overall Length (in) 4.969
Min. Bore (in) 1
Unit System Inch
Bushing Q2
P.D. (mm) 170.00
O.D. (mm) 167.00
MOQ 1
Weight (lb) 22.62
Part Number Cross Reference 24XHQ400, 24XHQ400, 24XHQ400
