24XL-PS8S, Timing Pulley Stock

24XL-PS8S, A6C2-24XL08, A 6C2-24XL08, 24XL-PS-8S, XL 24 ST, 24XL-P-8S

Product Details for 24XL-PS8S

Comparable to: A 6C2-24XL08, A6C2-24XL08, 24XL-PS-8S, XL 24 ST, 24XL-P-8S, 24XL-PS8S

Click to Enlarge

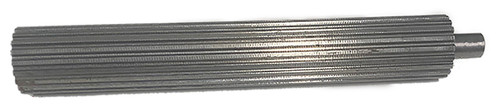

24XL-PS8S, Timing Pulley Stock, Steel

Learn more about 24XL-PS8S Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XL-PS8S
Teeth 24
Tooth Style XL
Material Steel
Pitch Diameter (in) 1.528
Outside Diameter (in) 1.508
Overall Length (in) 8.750
Unit System Inch
Min. Usable Length (in) 8.000
P.D. (mm) 38.80
O.D. (mm) 38.30
MOQ 1
Weight (lb) 3.99
Part Number Cross Reference A 6C2-24XL08, A6C2-24XL08, 24XL-PS-8S, XL 24 ST, 24XL-P-8S, 24XL-PS8S
Shank Length (in) 0.7500
