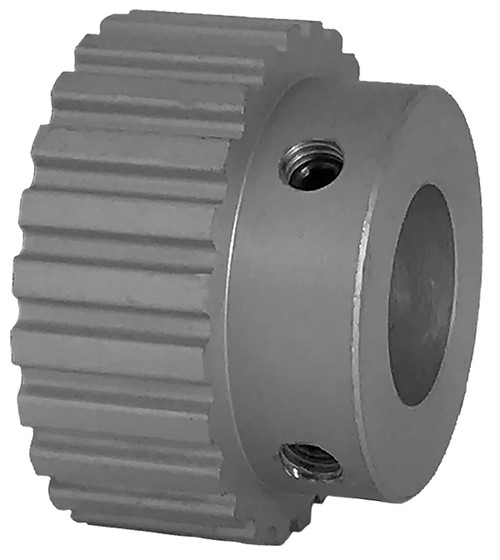

24XL037-6A7, Timing Pulley

24XL037-6A7 - Aluminum Imperial Pitch Pulleys

24XL037-6A7

24XL037-6A7 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

24XL037-6A7, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24XL037-6A7 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XL037-6A7
Teeth 24
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.563
Bore Description 5/8 Inch Finished Bore
Pitch Diameter (in) 1.528
Outside Diameter (in) 1.508
Face Width (in) 0.563
Overall Length (in) 0.937
Hub Diameter (in) 1.188
Min. Bore (in) 0.5625
Unit System Inch
P.D. (mm) 39.00
O.D. (mm) 38.30
MOQ 1
Weight (lb) 0.11
Part Number Cross Reference 24XL037-6A7, 24XL037-6A7
Set Screw Quantity 2
