24XL037-6FS4, Timing Pulley

24XL037-6FS4

Click to Enlarge

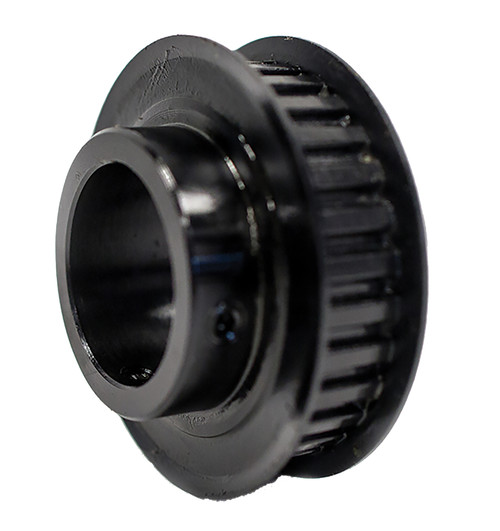

24XL037-6FS4, Timing Pulley, Steel, Black Oxide,

Learn more about 24XL037-6FS4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	24XL037-6FS4
Teeth	24
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.313
Bore Description	5/16 Inch Minimum Plain Bore
Pitch Diameter (in)	1.528
Outside Diameter (in)	1.508
Flange Diameter (in)	1.750
Face Width (in)	0.563
Overall Length (in)	0.906
Hub Diameter (in)	1.063
Min. Bore (in)	0.3125
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	39.00
O.D. (mm)	38.30
MOQ	1
Weight (lb)	0.36
Part Number Cross Reference	A 6C3-24DF03710, A6C3-24DF03710, 24XL037 5/16 6FS, 24XL037-1S X 5/16, 24XL037-6FS4, 24XL037-6FS4
Set Screw Quantity	2
