24XL037M6A8, Timing Pulley

24XL037M6A8

Click to Enlarge

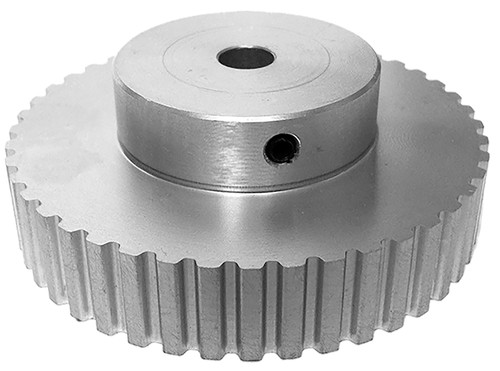

24XL037M6A8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24XL037M6A8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	24XL037M6A8
Teeth	24
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore Description	8 mm Finished Bore
Bore (mm)	8.00
Pitch Diameter (in)	1.528
Outside Diameter (in)	1.508
Pulley Belt Width (mm)	9.50
Unit System	Metric
P.D. (mm)	39.00
O.D. (mm)	38.30
Face Width (mm)	23.80
Overall Length (mm)	9.50
Hub Diameter (mm)	30.00
MOQ	1
Weight (lb)	0.10
Part Number Cross Reference	A 6A3M24NF09508, A6A3M24NF09508, 24XL037M6A8, 24XL037M6A8
Set Screw Quantity	2
