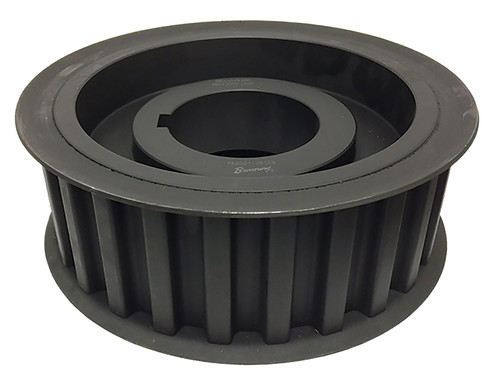

24XXHR300, Timing Pulley

24XXHR300 - Steel Imperial Pitch Pulleys

24XXHR300

24XXHR300 - Steel Imperial Pitch Pulleys Line Drawing

Click to Enlarge

24XXHR300, Timing Pulley, Steel

Learn more about 24XXHR300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XXHR300
Teeth 24
Tooth Style XXH
For Belt Width (in) 3.0000
Type 12
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R1 Bushing
Pitch Diameter (in) 9.549
Outside Diameter (in) 9.429
Flange Diameter (in) 10.313
Face Width (in) 3.688
Overall Length (in) 3.969
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 243.00
O.D. (mm) 239.50
MOQ 1
Weight (lb) 24.90
Part Number Cross Reference 24XXHR300, 24XXHR300, 24XXHR300
