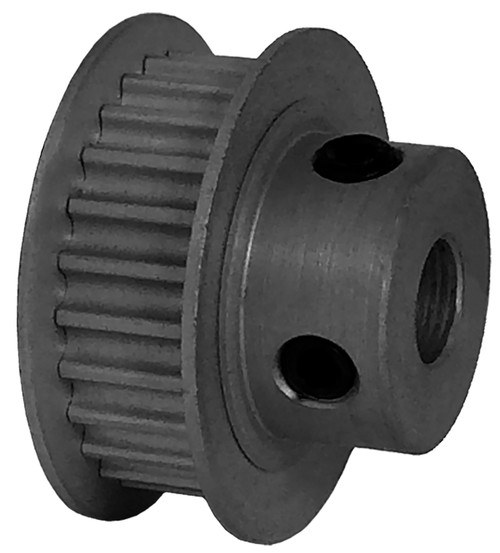

25-3P06-6FA3, Timing Pulley

25-3P06-6FA3

Click to Enlarge

25-3P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25-3P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	25-3P06-6FA3
Teeth	25
Tooth Style	3P
For Belt Width (mm)	6.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.940
Outside Diameter (in)	0.910
Flange Diameter (in)	1.060
Face Width (in)	0.386
Overall Length (in)	0.691
Hub Diameter (in)	0.625
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.280
Unit System	Inch
P.D. (mm)	24.00
O.D. (mm)	23.10
MOQ	1
Weight (lb)	0.03
Part Number Cross Reference	A 6A53-025DF0608, A6A53-025DF0608, 3MR-25S-06, 3MR-25S-06 6F, 25-3P06-6FA3, 25-3P06-6FA3
Set Screw Quantity	2
