25-3P09-6FA3, Timing Pulley

25-3P09-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 25-3P09-6FA3

Comparable to: A 6A53-025DF0908, A6A53-025DF0908, 3MR-25S-09, 78436075, TP3A3W9-25, 25-3GT09-1A X 1/4

Click to Enlarge

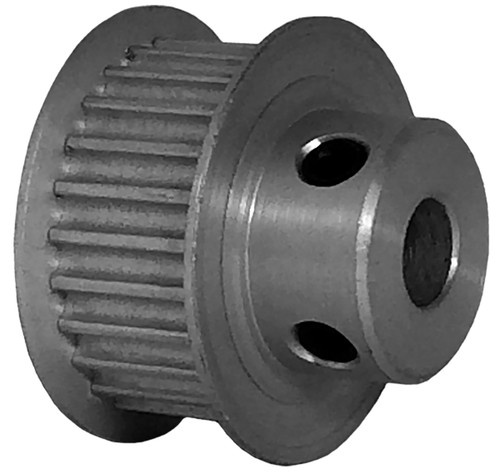

25-3P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25-3P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25-3P09-6FA3
Teeth 25
Tooth Style 3P
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.940
Outside Diameter (in) 0.910
Flange Diameter (in) 1.060
Face Width (in) 0.506
Overall Length (in) 0.812
Hub Diameter (in) 0.625
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.400
Unit System Inch
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference A 6A53-025DF0908, A6A53-025DF0908, 3MR-25S-09, 78436075, TP3A3W9-25, 25-3GT09-1A X 1/4
Set Screw Quantity 2
