25-5M09-6FA4, Timing Pulley

25-5M09-6FA4

Click to Enlarge

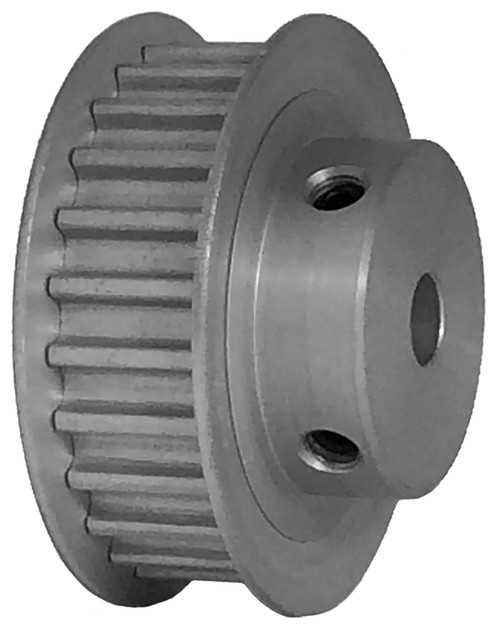

25-5M09-6FA4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25-5M09-6FA4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	25-5M09-6FA4
Teeth	25
Tooth Style	HTD5mm
For Belt Width (mm)	9.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.313
Bore Description	5/16 Inch Finished Bore
Pitch Diameter (in)	1.566
Outside Diameter (in)	1.521
Flange Diameter (in)	1.687
Face Width (in)	0.547
Overall Length (in)	0.859
Hub Diameter (in)	1.000
Min. Bore (in)	0.3125
Unit System	Inch
P.D. (mm)	40.00
O.D. (mm)	38.60
MOQ	1
Weight (lb)	0.10
Part Number Cross Reference	25-5M09-6FA4, 25-5M09-6FA4
Set Screw Quantity	2
