25-5M15-6A3, Timing Pulley

25-5M15-6A3 - Aluminum Powerhouse®HTD® Pulleys

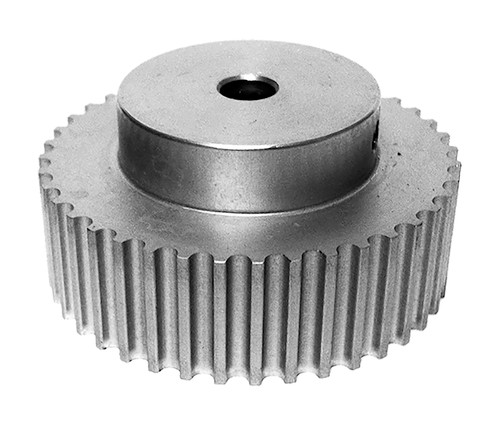

25-5M15-6A3

Click to Enlarge

25-5M15-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25-5M15-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25-5M15-6A3
Teeth 25
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.566
Outside Diameter (in) 1.521
Face Width (in) 0.781
Overall Length (in) 1.093
Hub Diameter (in) 1.000
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 40.00
O.D. (mm) 38.60
MOQ 1
Weight (lb) 0.15
Part Number Cross Reference A 6A25-025NF1508, A6A25-025NF1508, 25M5-L015-6, PT025G08L15N, 25-5M15-6A3, 25-5M15-6A3
Set Screw Quantity 2
