25-8MX62-6FS10, Timing Pulley

25-8MX62-6FS10

Click to Enlarge

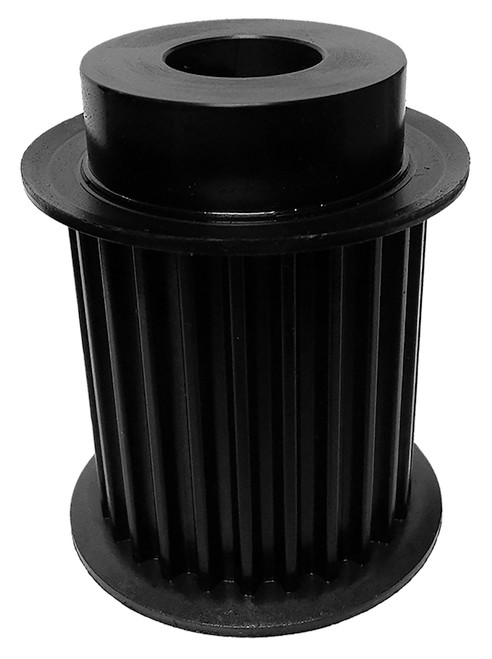

25-8MX62-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 25-8MX62-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	25-8MX62-6FS10
Teeth	25
Tooth Style	8MX
For Belt Width (mm)	62.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	2.506
Outside Diameter (in)	2.443
Flange Diameter (in)	2.953
Face Width (in)	2.906
Overall Length (in)	3.563
Hub Diameter (in)	2.078
Min. Bore (in)	1
Pulley Belt Width (in)	2.670
Unit System	Inch
P.D. (mm)	64.00
O.D. (mm)	62.10
MOQ	1
Weight (lb)	3.46
Part Number Cross Reference	PB8MX-25S-62, PB8MCS-25-62, 25G-8M-62-MPB, 20839309, PB8MX-25S-62 MPB, 8MPC25S62MPB, 25-8MX62-6FS10, 481986, 25-8MX62-6FS10
