25-8P20-1108, Timing Pulley

25-8P20-1108

Click to Enlarge

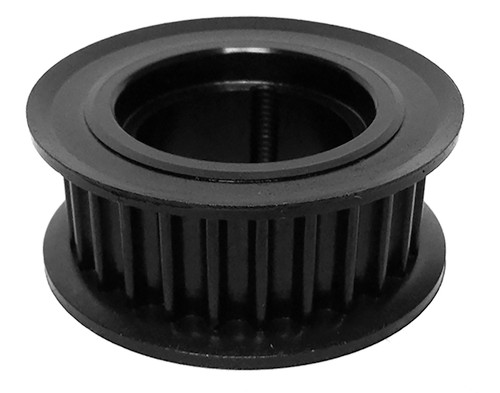

25-8P20-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 25-8P20-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	25-8P20-1108
Teeth	25
Tooth Style	8P
For Belt Width (mm)	20.00
Type	A1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1108 Bushing
Pitch Diameter (in)	2.506
Outside Diameter (in)	2.452
Flange Diameter (in)	2.953
Face Width (in)	1.130
Overall Length (in)	1.130
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.890
Unit System	Inch
Bushing	1108
P.D. (mm)	64.00
O.D. (mm)	62.30
MOQ	1
Weight (lb)	0.87
Part Number Cross Reference	P25-8MGT-20, B258M20TL, P25-8M20-1108, 25-8P20-1108, 25-8P20-1108
