25MP025-6FA3, Timing Pulley

25MP025-6FA3 - Aluminum Imperial Pitch Pulleys

Product Details for 25MP025-6FA3

Comparable to: 25MP025-6FA3, A 6A16-025DF2508, A6A16-025DF2508, PB25MXL025, 78260293, 25MP-025 1/4 6F, PT025A08L04T, TP7A4W4-28, 25MXL025-1A X 1

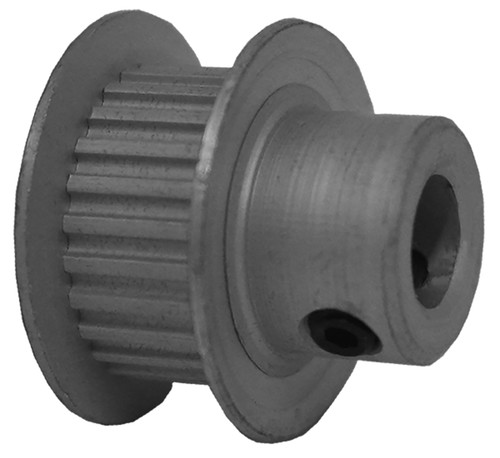

25MP025-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25MP025-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25MP025-6FA3
Teeth 25
Tooth Style MXL
For Belt Width (in) 0.250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.637
Outside Diameter (in) 0.617
Flange Diameter (in) 0.815
Face Width (in) 0.389
Overall Length (in) 0.688
Hub Diameter (in) 0.468
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.290
Unit System Inch
Max. Bore (in) 0.218
Weight (lb) 0.02
Part Number Cross Reference 25MP025-6FA3, A 6A16-025DF2508, A6A16-025DF2508, PB25MXL025, 78260293, 25MP-025 1/4 6F, PT025A08L04T, TP7A4W4-28, 25MXL025-1A X 1
