25V1090SK, V-Belt Pulley

25V1090SK, 5V10.9-2-SK, 20180668, 5V1092, 2-5V10.9, 2/5V1090SK

25V1090SK

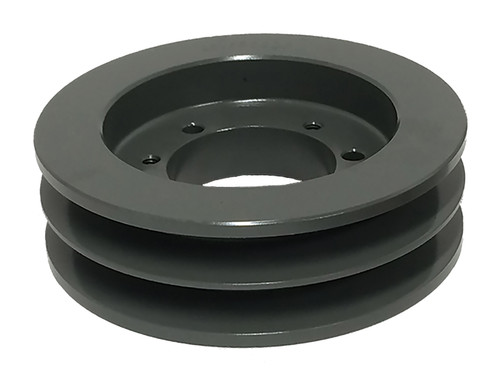

25V1090SK, V-Belt Pulley, Cast Iron

Learn more about 25V1090SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25V1090SK
Type D-3
Material Cast Iron
Bore Type QD
Bore (in) Bored for SK Bushing
Pitch Diameter (in) 10.800
Outside Diameter (in) 10.900
Face Width (in) 1.688
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 16.50
Part Number Cross Reference QD2/5V10.90, 25V1090SK, 25V1090SK
Grooves 2

Related Products

Comparable to: QD2/5V10.90, 25V1090SK, 25V1090SK
