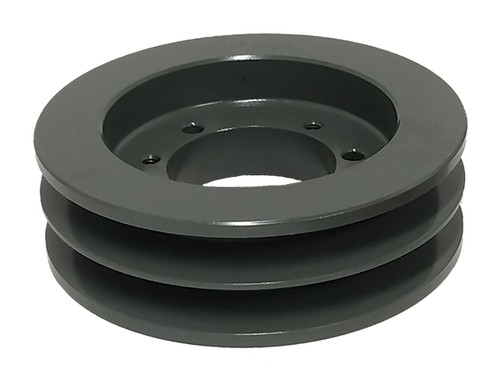

25V2360E, V-Belt Pulley

25V2360E, 5V23.6-2-E, 20180778, 5V2362, 2-5V23.6, 2/5V2360E

25V2360E

25V2360E, V-Belt Pulley, Cast Iron

Learn more about 25V2360E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25V2360E
Type C-3
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 23.500
Outside Diameter (in) 23.600
Face Width (in) 1.688
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 55.00
Part Number Cross Reference QD2/5V23.60, 25V2360E, 5V23.6-2-E, 20180778, 2-5V23.60-E SHEAVE, 5V2362, 2-5V23.60, 25V2360E, 455266, 25V2360E
Grooves 2

Related Products

Comparable to: QD2/5V23.60, 25V2360E, 5V23.6-2-E, 20180778, 2-5V23.60-E SHEAVE, 5V2362, 2-5V23.60, 25V2360E, 455266, 25V2360E

Documentation

Download Catalog
For custom parts click here
REACH Certification
RoHS Certification
