25V440SH, V-Belt Pulley

25V440SH, 5V4.4-2-SH, 20180815, 5V442, 2-5V4.4, 2/5V440SH

25V440SH

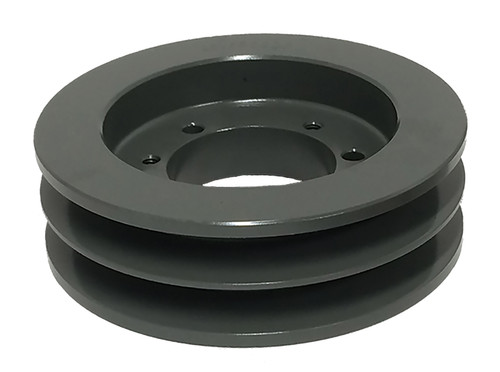

25V440SH, V-Belt Pulley, Cast Iron

Learn more about 25V440SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25V440SH
Type D-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SH Bushing
Pitch Diameter (in) 4.300
Outside Diameter (in) 4.400
Face Width (in) 1.688
Min. Bore (in) 0.5
Unit System Inch
Bushing SH
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 5.80
Part Number Cross Reference QD2/5V4.40, 25V440SH, 5V4.4-2-SH, 20180815, 2-5V4.40-SH SHEAVE, 5V442, 2-5V4.40, 25V440SH, 455240, 25V440SH
Grooves 2

Related Products

Comparable to: QD2/5V4.40, 25V440SH, 5V4.4-2-SH, 20180815, 2-5V4.40-SH SHEAVE, 5V442, 2-5V4.40, 25V440SH, 455240, 25V440SH
