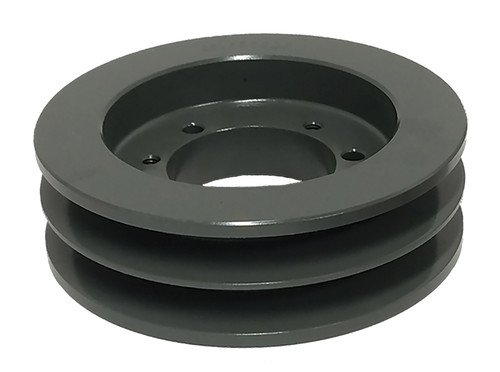

25V710SK, V-Belt Pulley

25V710SK, 5V7.1-2-SK, 20180864, 5V712, 2-5V7.1, 2/5V710SK

25V710SK

25V710SK, V-Belt Pulley, Cast Iron

Learn more about 25V710SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25V710SK
Type D-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 7.000
Outside Diameter (in) 7.100
Face Width (in) 1.688
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 11.50
Part Number Cross Reference QD2/5V7.10, 25V710SK, 5V7.1-2-SK, 20180864, 2-5V7.10-SK SHEAVE, 5V712, 2-5V7.10, 25V710SK, 455248, 25V710SK
Grooves 2

Related Products

Comparable to: QD2/5V7.10, 25V710SK, 5V7.1-2-SK, 20180864, 2-5V7.10-SK SHEAVE, 5V712, 2-5V7.10, 25V710SK, 455248, 25V710SK
