25XL037-6A3, Timing Pulley

25XL037-6A3 - Aluminum Imperial Pitch Pulleys

25XL037-6A3

Click to Enlarge

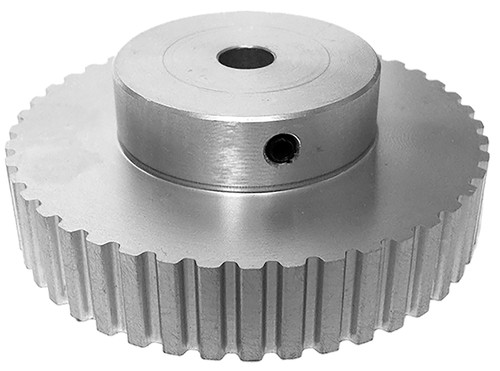

25XL037-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25XL037-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25XL037-6A3
Teeth 25
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.592
Outside Diameter (in) 1.572
Face Width (in) 0.563
Overall Length (in) 0.937
Hub Diameter (in) 1.250
Min. Bore (in) 0.250
Unit System Inch
P.D. (mm) 40.00
O.D. (mm) 39.90
MOQ 1
Weight (lb) 0.13
Part Number Cross Reference A A-NF, A6A3-25NF03708, PT025D08L06N, 25XL037-2A X 1/4, 25XL037-6A3
Set Screw Quantity 2
