26-2P09-6FA3 Powerhouse™ Pulleys

26-2P09-6FA3, A 6A51-026DF0908, A6A51-026DF0908, 2MR-26S-09, 78426038, TP2A3W9-

Product Details for 26-2P09-6FA3

Comparable to: 26-2P09-6FA3, A 6A51-026DF0908, A6A51-026DF0908, 2MR-26S-09, 78426038, TP2A3W9-

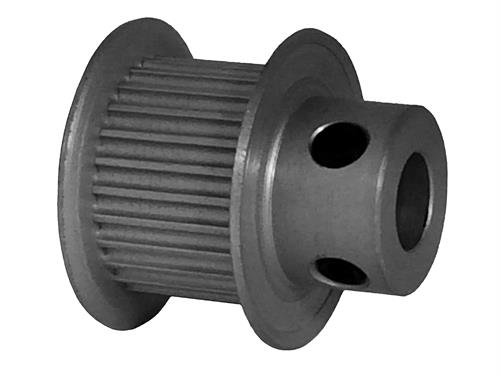

26-2P09-6FA3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Aluminum

Specifications

Product Number 26-2P09-6FA3
Teeth 26
Tooth Style GT 2mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.652
Outside Diameter (in) 0.632
Flange Diameter (in) 0.840
Face Width (in) 0.514
Overall Length (in) 0.812
Hub Diameter (in) 0.490
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.410
Unit System Inch
Max. Bore (in) 0.24
Weight (lb) 0.02
Part Number Cross Reference 26-2P09-6FA3, A 6A51-026DF0908, A6A51-026DF0908, 2MR-26S-09, 78426038, TP2A3W9-

Documentation

Download Catalog 2015_BBMAN_CATALOG_127.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 26-2P09-6FA3_REACH_cert
RoHS Certification 26-2P09-6FA3_RoHS_cert
