26-3M06M6A6 Powerhouse® HTD® Pulleys

26-3M06M6A6, A 6A23M026NF0606

Product Details for 26-3M06M6A6

Comparable to: 26-3M06M6A6, A 6A23M026NF0606, A6A23M026NF0606

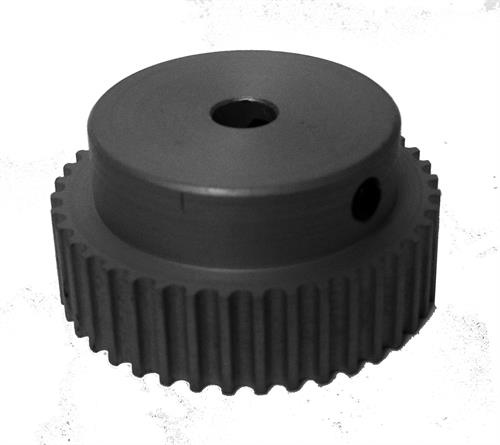

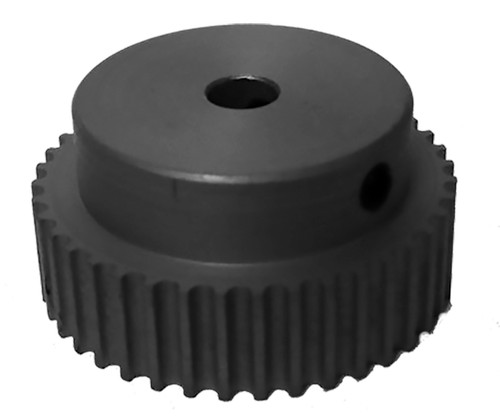

26-3M06M6A6, Timing Pulley, Powerhouse HTD, 6 mm Bore, Aluminum

Specifications

Product Number 26-3M06M6A6
Teeth 26
Tooth Style HTD 3mm
For Belt Width (mm) 6.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 6.00
Set Screw 2 x M4 @ 90°
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 24.80
O.D. (mm) 24.00
Face Width (mm) 9.80
Overall Length (mm) 17.50
Hub Diameter (mm) 15.90
Weight (lb) 0.04
Part Number Cross Reference 26-3M06M6A6, A 6A23M026NF0606, A6A23M026NF0606
