26-3M06MIA6 Powerhouse™ HTD® Pulleys

26-3M06MIA6, A 6D23M026DF0606

Product Details for 26-3M06MIA6

Comparable to: 26-3M06MIA6, A 6D23M026DF0606,

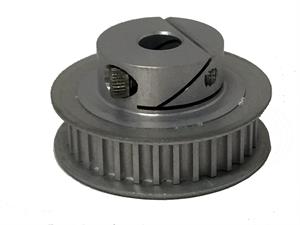

26-3M06MIA6, Timing Pulley, Powerhouse HTD, 6 mm Bore, Aluminum, E-Z Lock Hub

Specifications

Product Number 26-3M06MIA6
Teeth 26
Tooth Style HTD 3mm
For Belt Width (mm) 6.000
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 6.00
Unit System Metric
P.D. (mm) 24.80
O.D. (mm) 24.00
Flange Diameter (mm) 28.10
Face Width (mm) 9.80
Overall Length (mm) 17.50
Hub Diameter (mm) 15.90
Number & Screw Size 1 x M2
Weight (lb) 0.04
List Price (1-9 Qty.) (USD) 15.1715
Discount Price (10-24 Qty.) (USD) 14.7723
Discount Price (25-49 Qty.) (USD) 12.179
Discount Price (50-99 Qty.) (USD) 8.739
Discount Price (100-249 Qty.) (USD) 7.749
Part Number Cross Reference 26-3M06MIA6, A 6D23M026DF0606,

Documentation

Download Catalog 2015_BBMAN_CATALOG_98.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 26-3M06MIA6_REACH_cert
RoHS Certification 26-3M06MIA6_RoHS_cert
