26-3M09-6FA3, Timing Pulley

26-3M09-6FA3 - Aluminum Powerhouse®HTD® Pulleys

26-3M09-6FA3

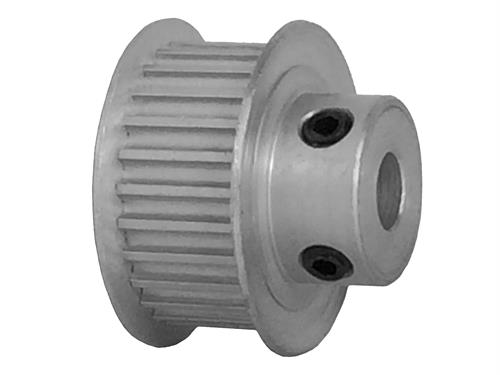

Click to Enlarge

26-3M09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 26-3M09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26-3M09-6FA3
Teeth 26
Tooth Style HTD3mm
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.977
Outside Diameter (in) 0.947
Flange Diameter (in) 1.105
Face Width (in) 0.506
Overall Length (in) 0.812
Hub Diameter (in) 0.625
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.400
Unit System Inch
P.D. (mm) 25.00
O.D. (mm) 24.10
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference A 6A23-026DF0908, A6A23-026DF0908, P26-3M-09AL, 26M3-L09M-6F, PT026F08L09T, 26-3M-09 X 1/4, 26-3M09-6FA3, 26-3M09-6FA3
Set Screw Quantity 2

Comparable to: A 6A23-026DF0908, A6A23-026DF0908, P26-3M-09AL, 26M3-L09M-6F, PT026F08L09T, 26-3M-09 X 1/4, 26-3M09-6FA3, 26-3M09-6FA3

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
