26-3M09M6A6 Powerhouse™ HTD® Pulleys

26-3M09M6A6, A 6A23M026NF0906

Product Details for 26-3M09M6A6

Comparable to: 26-3M09M6A6, A 6A23M026NF0906,

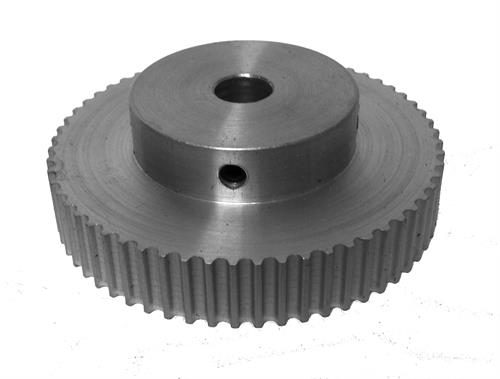

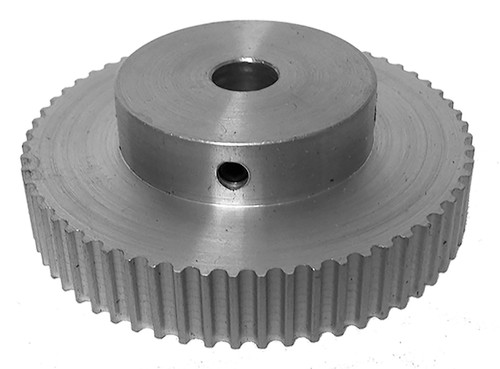

26-3M09M6A6, Timing Pulley, Powerhouse HTD, 6 mm Bore, Aluminum

Specifications

Product Number 26-3M09M6A6
Teeth 26
Tooth Style HTD 3mm
For Belt Width (mm) 9.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 6.00
Set Screw 2 x M4 @ 90°
Pulley Belt Width (mm) 9.00
Unit System Metric
P.D. (mm) 24.80
O.D. (mm) 24.00
Face Width (mm) 12.80
Overall Length (mm) 20.60
Hub Diameter (mm) 15.90
Weight (lb) 0.04
List Price (1-9 Qty.) (USD) 9.65
Discount Price (10-24 Qty.) (USD) 9.17
Discount Price (25-49 Qty.) (USD) 7.24
Discount Price (50-99 Qty.) (USD) 6.03
Discount Price (100-249 Qty.) (USD) 5.07
Part Number Cross Reference 26-3M09M6A6, A 6A23M026NF0906,

Documentation

Download Catalog 2015_BBMAN_CATALOG_100.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 26-3M09M6A6_REACH_cert
RoHS Certification 26-3M09M6A6_RoHS_cert
