26-3M09M6FA6 Powerhouse™ HTD® Pulleys

26-3M09M6FA6, A 6A23M026DF0906, A6A23M026DF0906

Product Details for 26-3M09M6FA6

Comparable to: 26-3M09M6FA6, A 6A23M026DF0906, A6A23M026DF0906

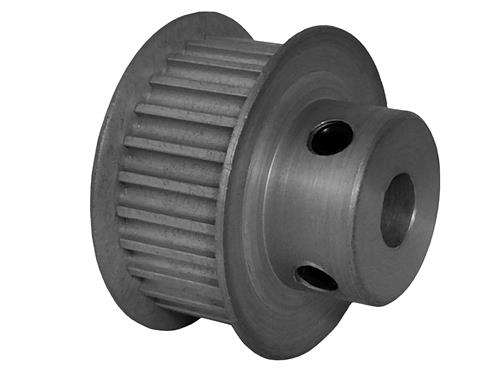

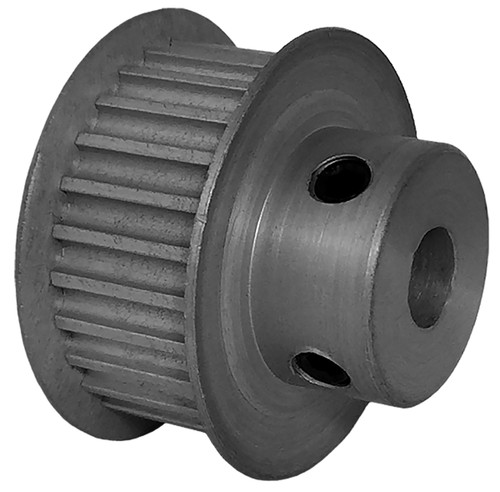

26-3M09M6FA6, Timing Pulley, Powerhouse HTD, 6 mm Bore, Aluminum

Specifications

Product Number 26-3M09M6FA6
Teeth 26
Tooth Style HTD 3mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 6.00
Set Screw 2 x M4 @ 90°
Pulley Belt Width (mm) 10.20
Unit System Metric
P.D. (mm) 24.80
O.D. (mm) 24.00
Flange Diameter (mm) 28.10
Face Width (mm) 12.80
Overall Length (mm) 20.60
Hub Diameter (mm) 15.90
Weight (lb) 0.04
Part Number Cross Reference 26-3M09M6FA6, A 6A23M026DF0906, A6A23M026DF0906

Documentation

Download Catalog 2015_BBMAN_CATALOG_99.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 26-3M09M6FA6_REACH_cert
RoHS Certification 26-3M09M6FA6_RoHS_cert
