26-5M09-6A3, Timing Pulley

26-5M09-6A3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 26-5M09-6A3

Comparable to: A 6A25-026NF0908, A6A25-026NF0908, PT026G08L09N

Click to Enlarge

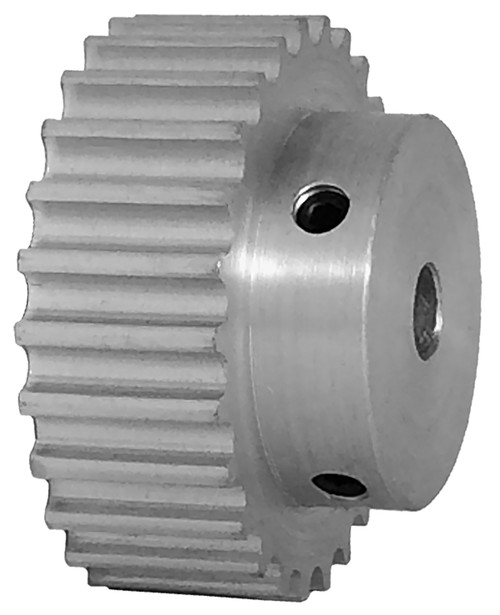

26-5M09-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 26-5M09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26-5M09-6A3
Teeth 26
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.629
Outside Diameter (in) 1.584
Face Width (in) 0.546
Overall Length (in) 0.859
Hub Diameter (in) 1.063
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference A 6A25-026NF0908, A6A25-026NF0908, PT026G08L09N
Set Screw Quantity 2
