26-5M15-6A3, Timing Pulley

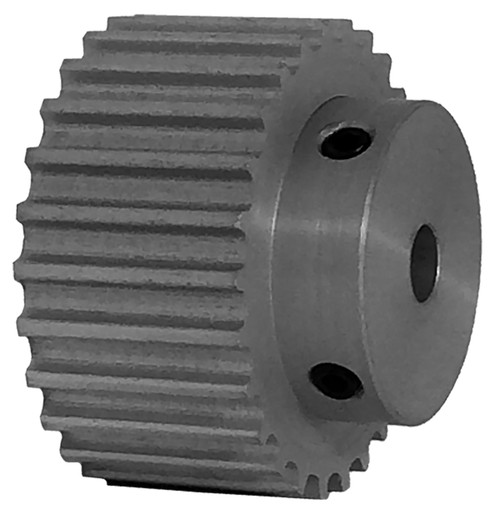

26-5M15-6A3 - Aluminum Powerhouse®HTD® Pulleys

26-5M15-6A3

26-5M15-6A3 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

26-5M15-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 26-5M15-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26-5M15-6A3
Teeth 26
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.629
Outside Diameter (in) 1.584
Face Width (in) 0.781
Overall Length (in) 1.093
Hub Diameter (in) 1.063
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 41.00
O.D. (mm) 40.20
MOQ 1
Weight (lb) 0.17
Part Number Cross Reference A 6A25-026NF1508, A6A25-026NF1508, 26M5-L015-6, PT026G08L15N, 26-5M15-6A3, 26-5M15-6A3
Set Screw Quantity 2
