26-5P15-6FA3, Timing Pulley

26-5P15-6FA3 - Aluminum Powerhouse® Pulleys

26-5P15-6FA3

Click to Enlarge

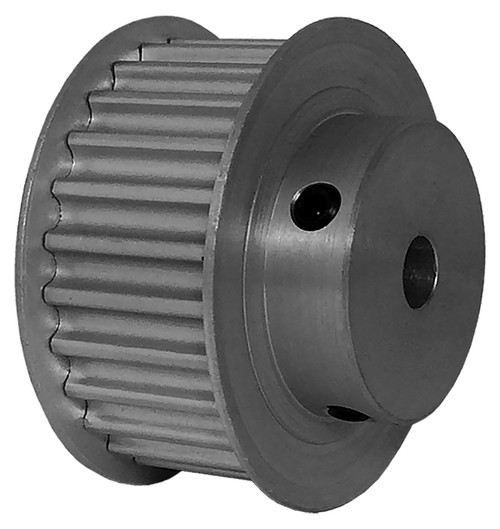

26-5P15-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 26-5P15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26-5P15-6FA3
Teeth 26
Tooth Style 5P
For Belt Width (mm) 15.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.629
Outside Diameter (in) 1.584
Flange Diameter (in) 1.750
Face Width (in) 0.781
Overall Length (in) 1.094
Hub Diameter (in) 1.063
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 41.00
O.D. (mm) 40.20
MOQ 1
Weight (lb) 0.17
Part Number Cross Reference P26-5MGT-15AL, 26-5P15-6FA3, 26-5P15-6FA3
Set Screw Quantity 2
