26-5P25-6FS5, Timing Pulley

26-5P25-6FS5

Click to Enlarge

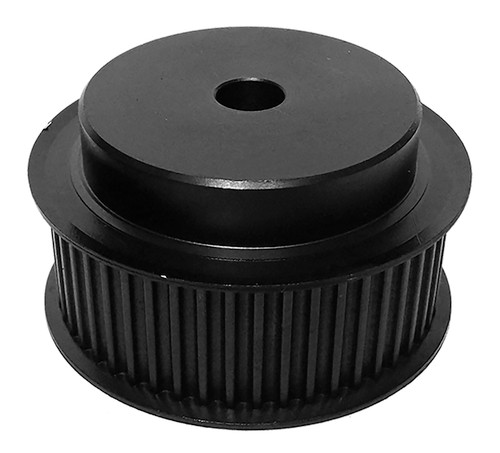

26-5P25-6FS5, Timing Pulley, Steel, Black Oxide,

Learn more about 26-5P25-6FS5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	26-5P25-6FS5
Teeth	26
Tooth Style	5P
For Belt Width (mm)	25.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.375
Bore Description	3/8 Inch Minimum Plain Bore
Pitch Diameter (in)	1.629
Outside Diameter (in)	1.584
Flange Diameter (in)	1.906
Face Width (in)	1.280
Overall Length (in)	1.680
Hub Diameter (in)	1.210
Min. Bore (in)	0.375
Pulley Belt Width (in)	1.100
Unit System	Inch
P.D. (mm)	41.00
O.D. (mm)	40.20
MOQ	1
Weight (lb)	0.79
Part Number Cross Reference	P26-5MGT-25-MPB, 5MR-26S-25, 26-5P25-6FS5, 26-5P25-6FS5
